XCMG XMZ90

XMZ90 - XCMG XMZ90 - multi-function drilling rig XMZ90

Model	XMZ90
Engine	Cummins-QSF3.8t3TC125 93kW@2200rpm
Motor	-
rotary drive / max torque	9.6kN.m
rotary drive / max speed	95rpm
feed system / max hoist force	50kN
feed system / max feed force	50kN
feed system / max hoist speed	54m/min
feed system / max feed speed	14m/min
feed system / stroke	2000mm
undercarriage / overal width	1500mm
undercarriage / overal length	2300mm
clamping range	60~225mm
max horizontal drilling height	3050mm
drill pipe diameter	73, 89, 102, 114mm
Dimension in Transporation	5210×1500×2650mm
Weight	8t

All specifications are approximate. Specifications are subject to change without notice.

Inquire by Email
For more details

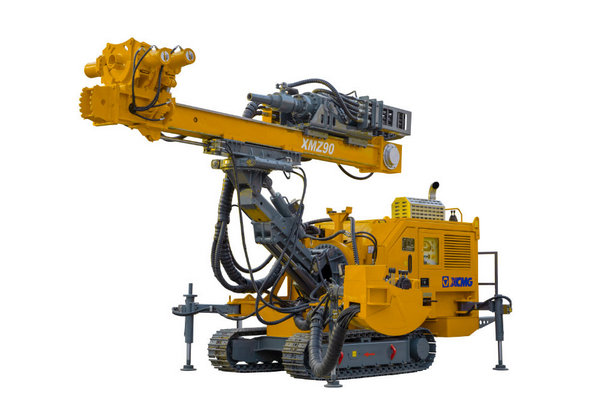

XCMG XMZ90 multi-function drilling rig
