XCMG XMZ150T

XMZ150T - XCMG XMZ150T - multi-function drilling rig XMZ150T

Model	XMZ150T
Engine	Cummins-QSF2.8t3TC71 53kW@2200rpm
Motor	90kw / 380v
rotary drive / max torque	14.1kN.m
rotary drive / max speed	68rpm
feed system / max hoist force	70kN
feed system / max feed force	70kN
feed system / max hoist speed	40m/min
feed system / max feed speed	40m/min
feed system / stroke	2800mm
undercarriage / overal width	400mm
undercarriage / overal length	3295mm
clamping range	65~225mm
max horizontal drilling height	4100mm
drill pipe diameter	73, 89, 102, 114mm
Dimension in Transporation	8950×2500×3150mm
Weight	17.5t

All specifications are approximate. Specifications are subject to change without notice.

Inquire by Email
For more details

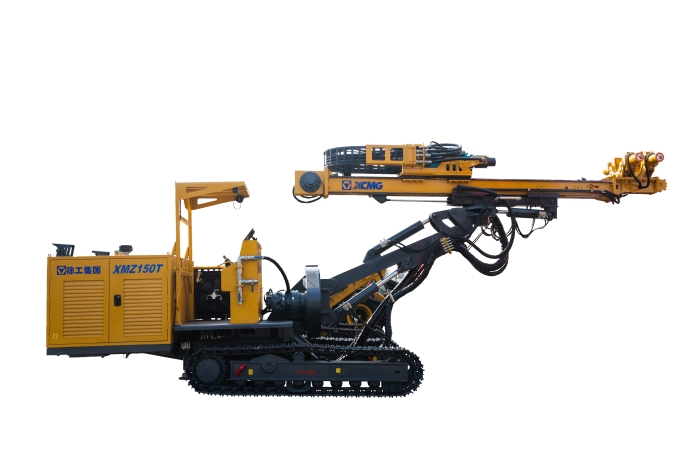

XCMG XMZ150T multi-function drilling rig
