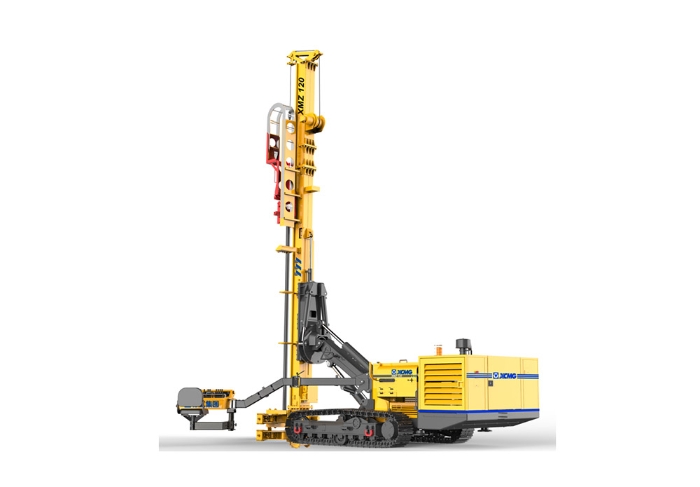

XCMG XMZ120A

XMZ120A - XCMG XMZ120A - multi-function drilling rig XMZ120A

Model	XMZ120A
Engine	Cummins-QSB4.5-C160-30 119kW@2200rpm
Motor	-
rotary drive / max torque	14.1kN.m
rotary drive / max speed	68rpm
feed system / max hoist force	70kN
feed system / max feed force	70kN
feed system / max hoist speed	40m/min
feed system / max feed speed	40m/min
feed system / stroke	4000mm
undercarriage / overal width	2280mm
undercarriage / overal length	3146mm
clamping range	60~415mm
max horizontal drilling height	4250mm
drill pipe diameter	73, 89, 102, 114mm
Dimension in Transporation	9800×2280×2800mm
Weight	14.5t

All specifications are approximate. Specifications are subject to change without notice.
