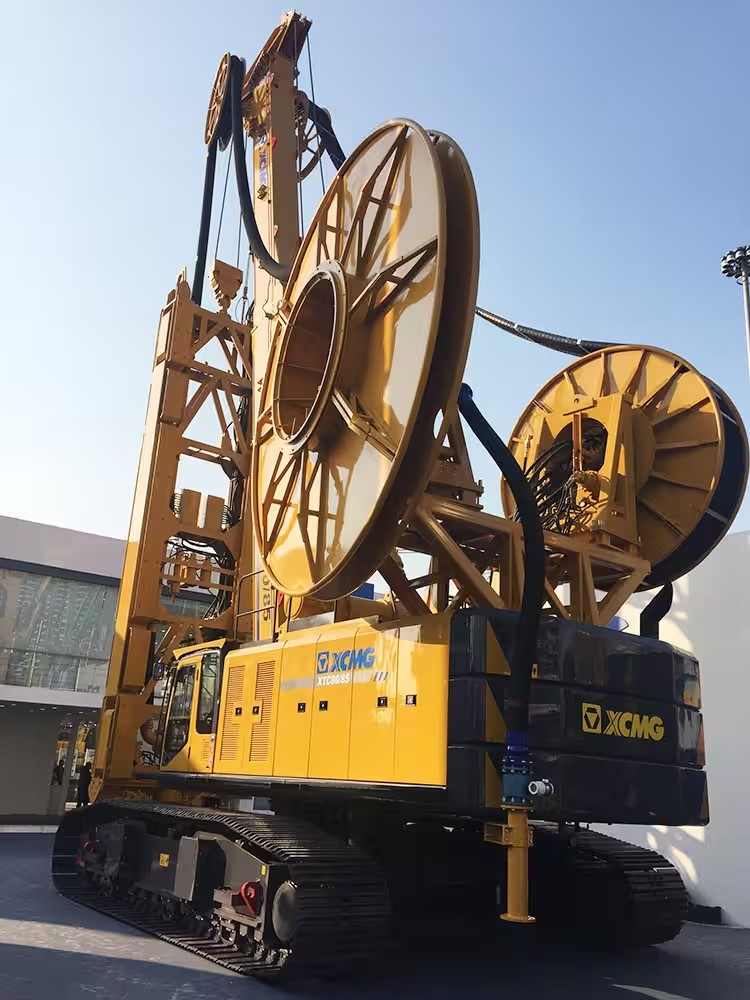

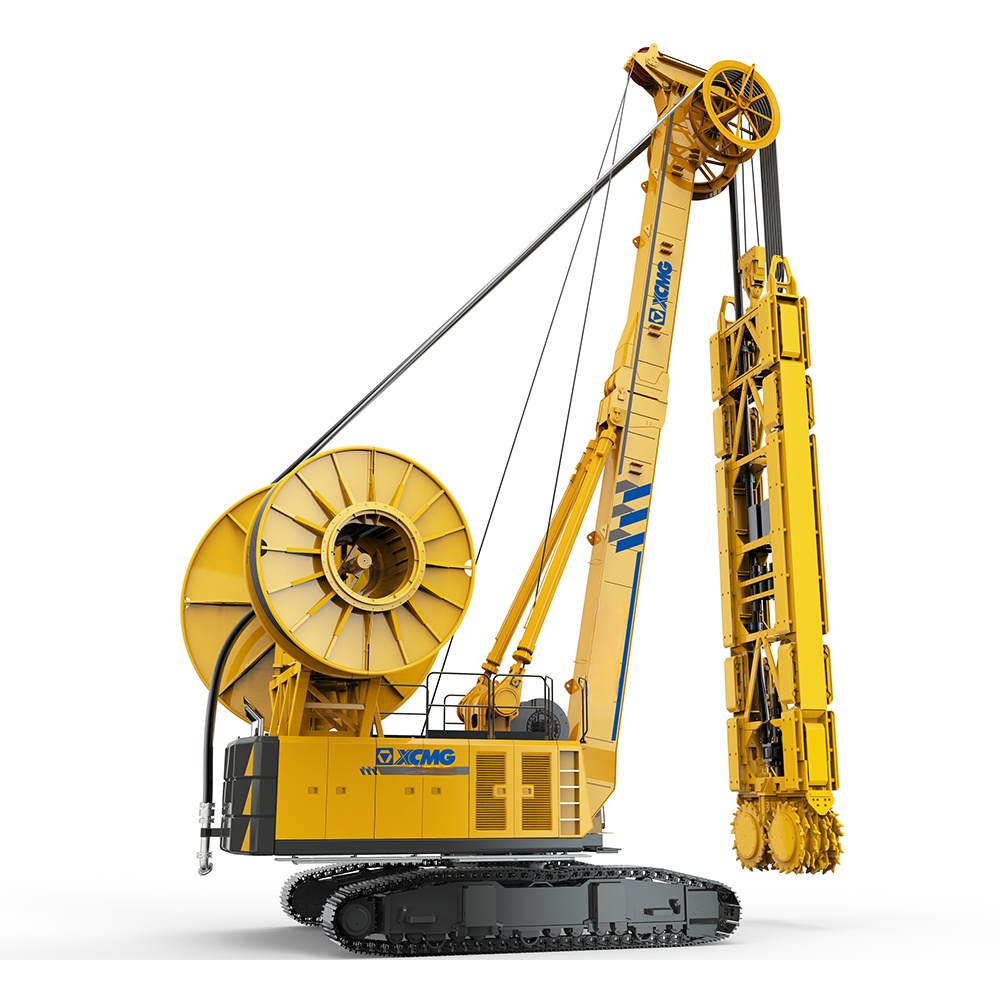

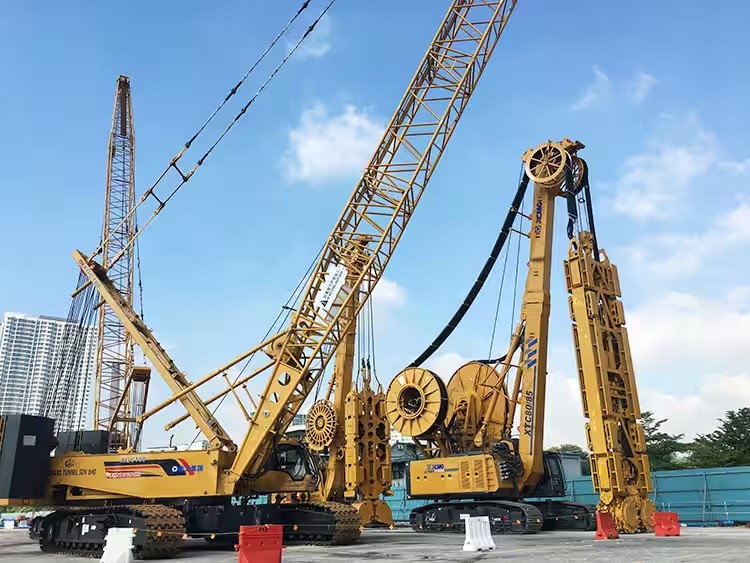

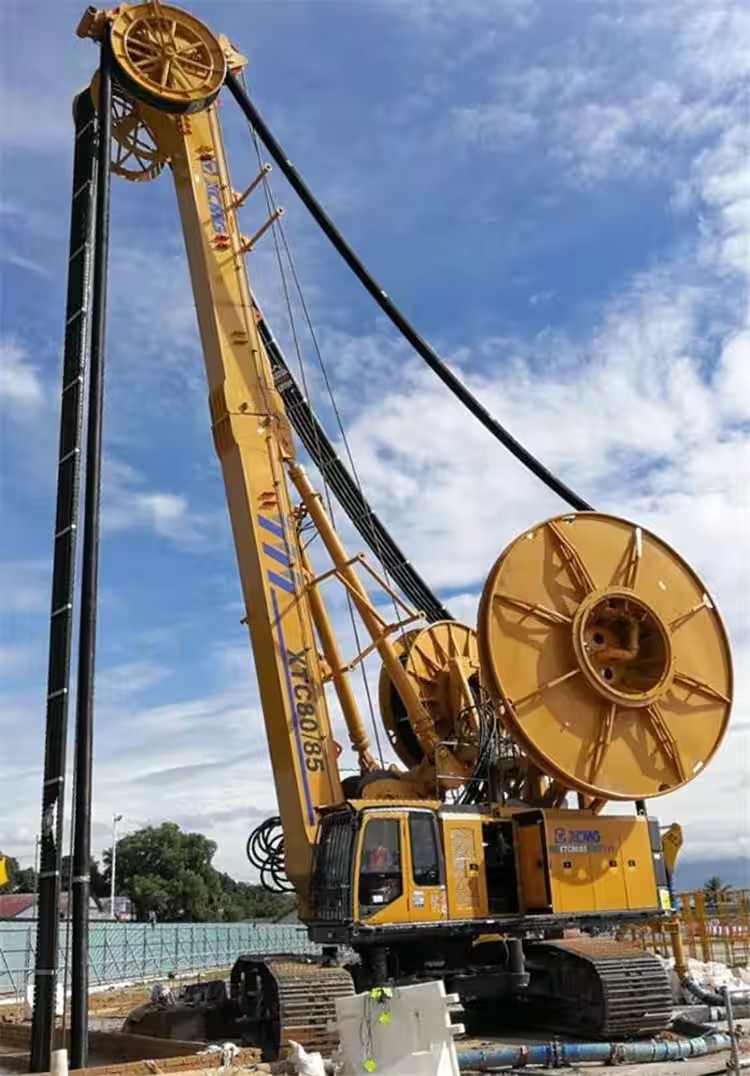

XCMG XTC80/85

XTC80/85 - XCMG XTC80/85 - trench cutter XTC80/85

Model	XTC80/85
power	Cummins QSK19 567kw@2100rpm
trench width	800~1500mm
max wall depth	85m
trench length	2800mm
trench accuracy	2‰
max torque	2x80kN.m
rotary speed	0~25rpm
max pull-down piston pull	600kN
rope diameter	32mm
slag discharge way	pump lift discharge
type of base machine	special
system pressure	32Mpa
working radius	5300~5900mm
track shoe width	1000mm
traveling speed	1km/h
max grade ability	30%
min clearance	509mm
dimension in working	11600550018700mm
dimension in transporation	1490034803230mm
total weight	164t

XCMG trench cutter

XCMG XTC100/105

XCMG rotary drilling rig

XCMG multi-function drilling rig

XCMG diaphragm wall grab

All specifications are approximate. Specifications are subject to change without notice.
