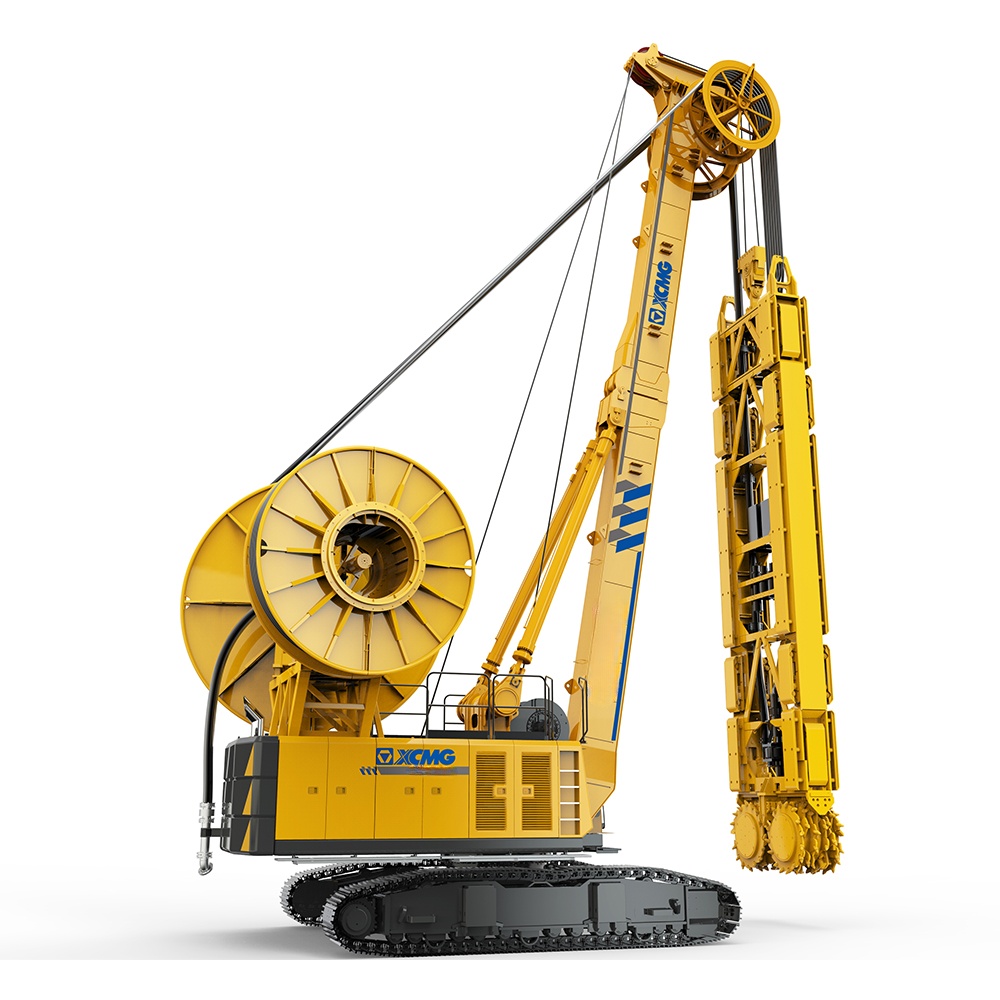

XCMG XTC100/105



XTC100/105 - XCMG XTC100/105 - trench cutter XTC100/105

Model XTC100/105
power Cummins QSK19
567kw@2100rpm
trench width 800~1500mm
max wall depth 105m
trench length 2800mm
trench accuracy 2‰
max torque 2x100kN.m
rotary speed 0~25rpm
max pull-down piston pull 700kN
rope diameter 36mm
slag discharge way pump lift discharge
type of base machine special
system pressure 32Mpa
working radius 5300~5900mm
track shoe width 1000mm
traveling speed 1km/h
max grade ability 30%
min clearance 509mm
dimension in working 11600*5500*18700mm
dimension in transporation 14890*3480*3350mm
total weight 175t
XCMG trench cutter

XCMG XTC80/55
XCMG XTC80/60
XCMG XTC80/60M
XCMG XTC80/85
XCMG XTC100/105
XCMG XTC120

XCMG rotary drilling rig
XCMG multi-function drilling rig
XCMG diaphragm wall grab

All specifications are approximate. Specifications are subject to change without notice.
