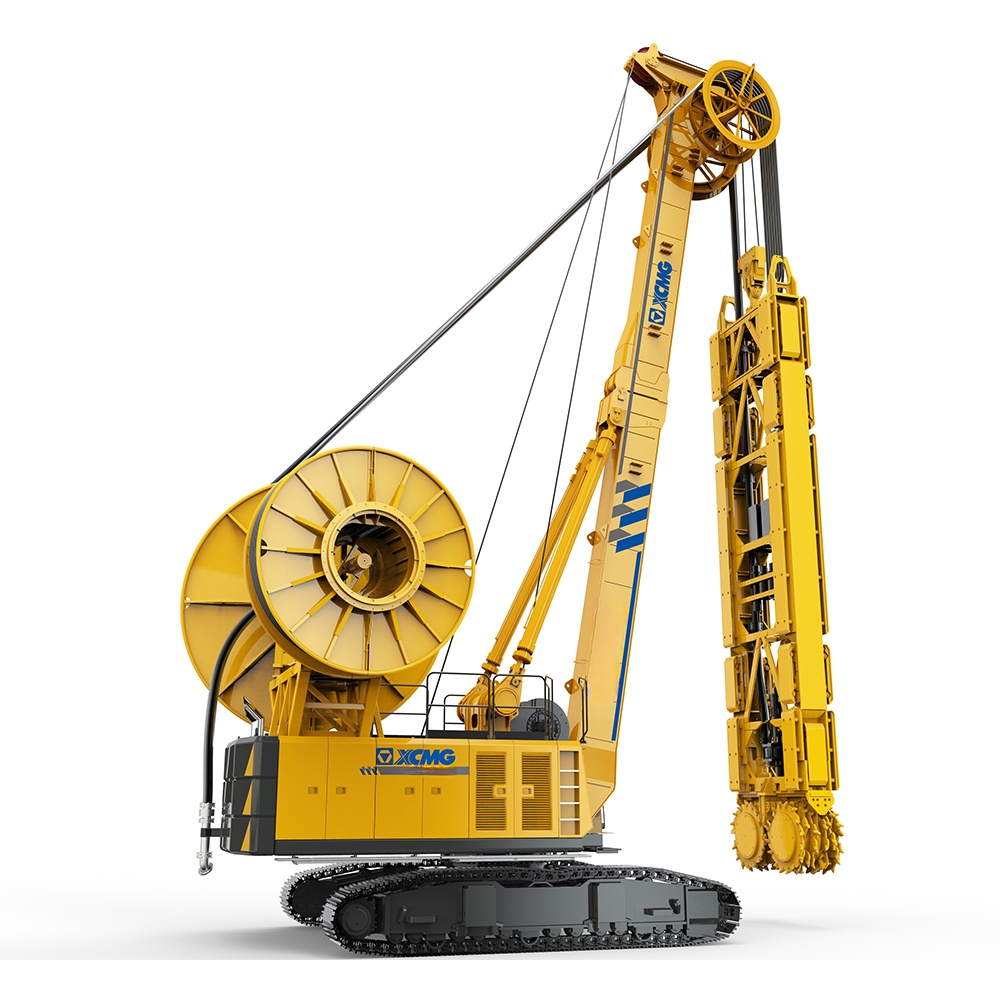

XCMG XTC80/60



XTC80/60 - XCMG XTC80/60 - trench cutter XTC80/60

Model XTC80/60
power Cummins QSK19
567kw@2100rpm
trench width 800~1500mm
max wall depth 60m
trench length 2800mm
trench accuracy 2‰
max torque 2x80kN.m
rotary speed 0~25rpm
max pull-down piston pull 600kN
rope diameter 32mm
slag discharge way pump lift discharge
type of base machine special
system pressure 32Mpa
working radius 4200~5100mm
track shoe width 800mm
traveling speed 1.3km/h
max grade ability 30%
min clearance 450mm
dimension in working 10600*4900*17300mm
dimension in transporation 14100*3500*3450mm
total weight 130t
XCMG trench cutter

XCMG XTC80/55
XCMG XTC80/60
XCMG XTC80/60M
XCMG XTC80/85
XCMG XTC100/105
XCMG XTC120

XCMG rotary drilling rig
XCMG multi-function drilling rig
XCMG diaphragm wall grab

All specifications are approximate. Specifications are subject to change without notice.
