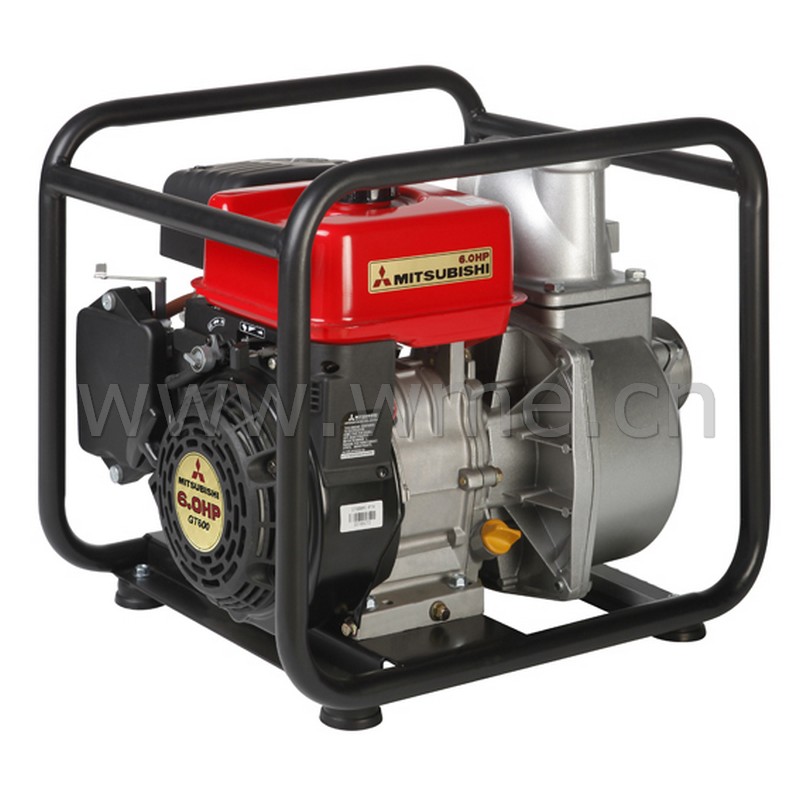

water pump set
|
|
|
| Model | Engine | Inlet Dia. | Outlet Dia. | Max Flow | Max Lift | Machine Weight |
Dimension L * W * H |
Note |
| MBP15G | Mitsubishi GT241 | 1.5" | 1.5" | 21m³/h | 22m | 22KGS | 445*350*355mm | 1.5" Clean Water Pump |
| MBP20G | Mitsubishi GT400 | 2.0" | 2.0" | 30m³/h | 28m | 26KGS | 485*365*395mm | 2" Clean Water Pump |
| MBP30G | Mitsubishi GT600 | 3.0" | 3.0" | 60m³/h | 30m | 30KGS | 505*400*420mm | 3" Clean Water Pump |
| MBP40G | Mitsubishi GT1000 | 4.0" | 4.0" | 80m³/h | 25m | 50KGS | 635*500*590mm | 4" Clean Water Pump |
| MBP15H | Mitsubishi GT600 | 1.5" | 1.5"/1.0"/1.0" | 20m³/h | 55m | 33KGS | 505*400*420mm | 1.5" High pressure Pump |
| MBP20H | Mitsubishi GT600 | 2.0" | 2.0"/1.5"/1.5" | 30m³/h | 60m | 33KGS | 505*440*420mm | 2" High pressure Pump |
| MBP30T | Mitsubishi GT600 | 3.0" | 3.0" | 45m³/h | 25m | 48KGS | 550*440*455mm | 3" Trash Pump |
|
All specifications are approximate. Specifications are subject to change without notice. |
|
