Mitsubishi engine

made in

Mitsubishi China factory



H.S.8407 9090 90



Mitsubishi






Model Max.Power Rated.Power Fuel Weight Dimension
L * W * H		 Note Foto
GT241 2.4HP / 1.8KW 1.8HP / 1.3KW Gasoline 9.5KGS 274*303.5*285mm   Mitsubishi GT241.jpg (244KB)

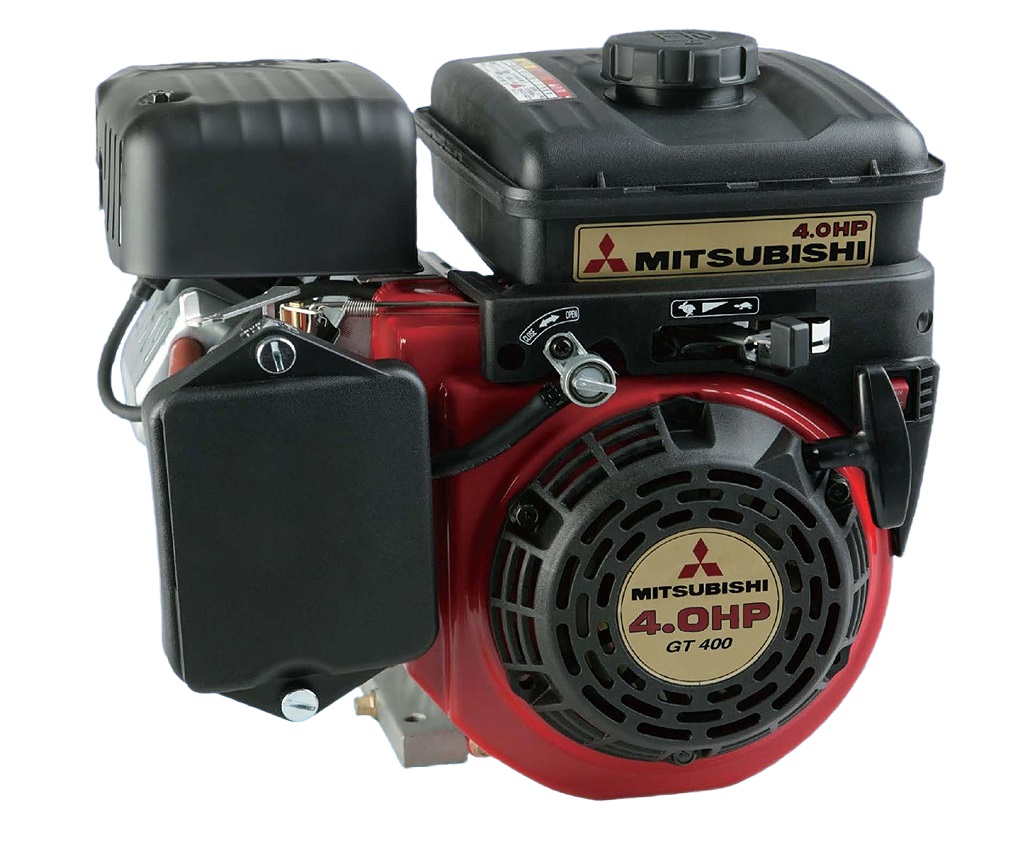

GT400 4HP / 2.9KW 2.8HP / 2.1KW Gasoline PN type 12.7KGS
LN type 13.7KGS		 297.5*340*320.5mm   Mitsubishi GT400.jpg (248KB)

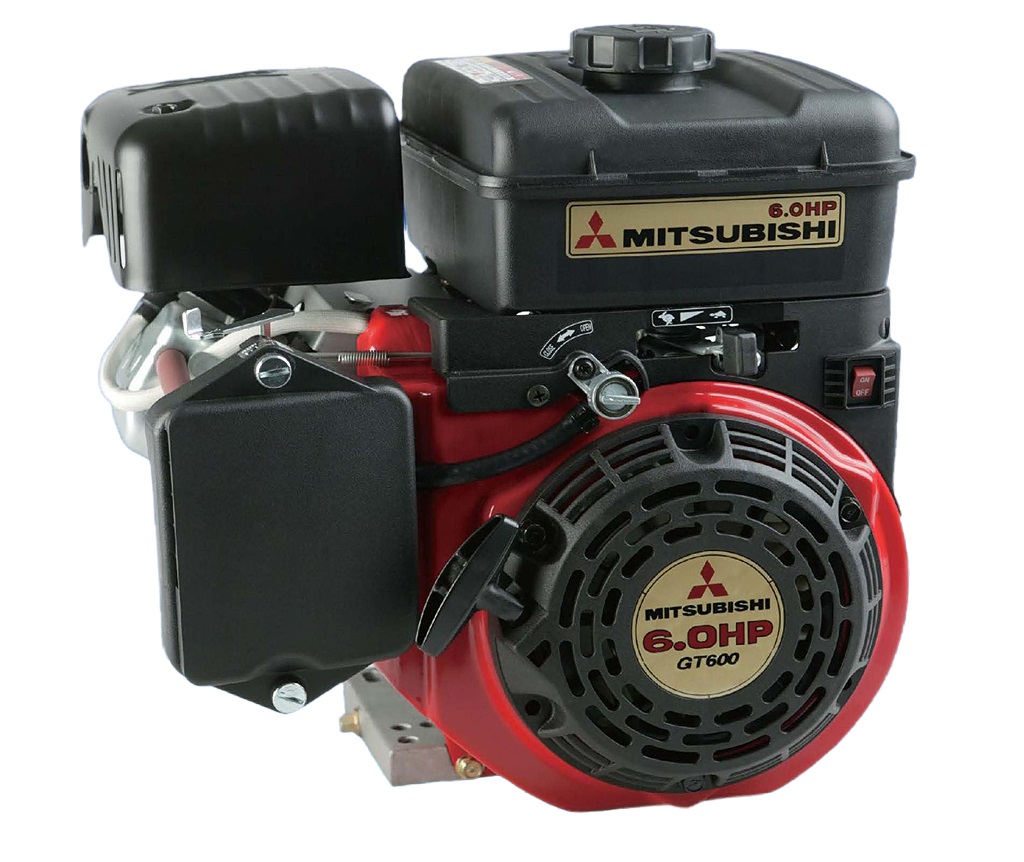

GT600 6HP / 4.4KW 4.5HP / 3.3KW Gasoline PN type 14.9KGS
LN type 15.8KGS		 309*354*353.5mm   Mitsubishi GT600.jpg (250KB)

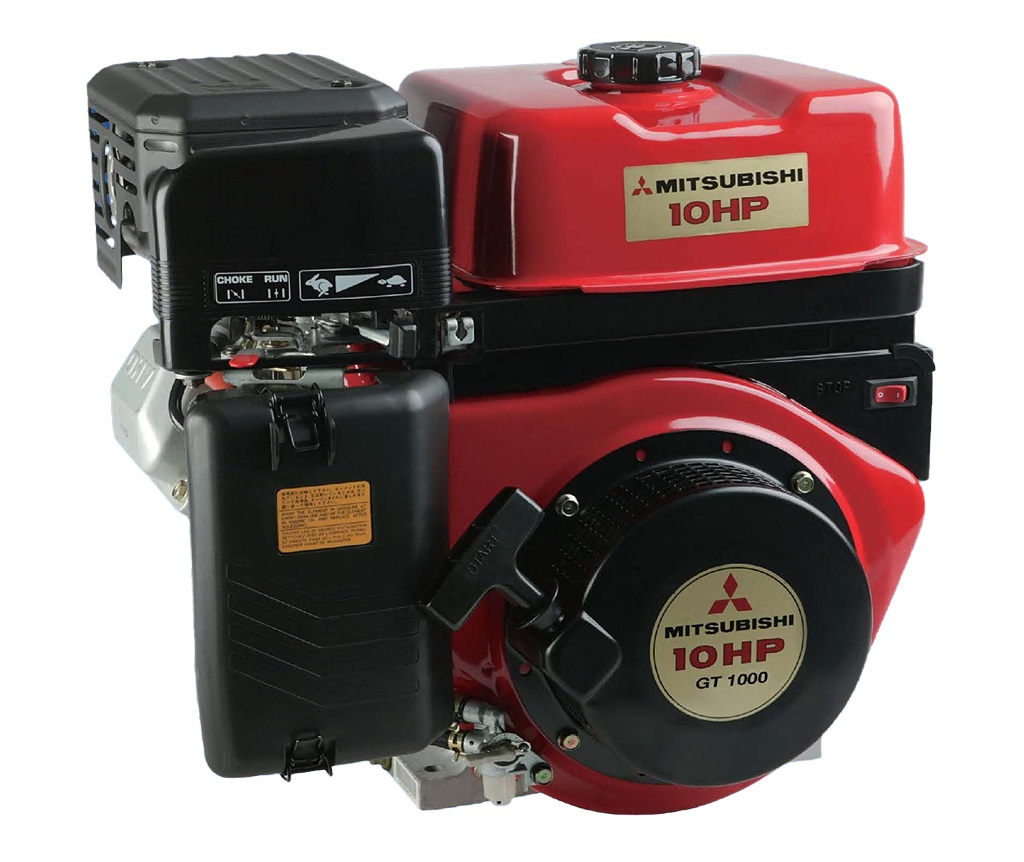

GT1000 10HP / 7.4KW 7.5HP / 5.5KW Gasoline 27KGS 395.5*434*431mm   Mitsubishi GT1000.jpg (246KB)

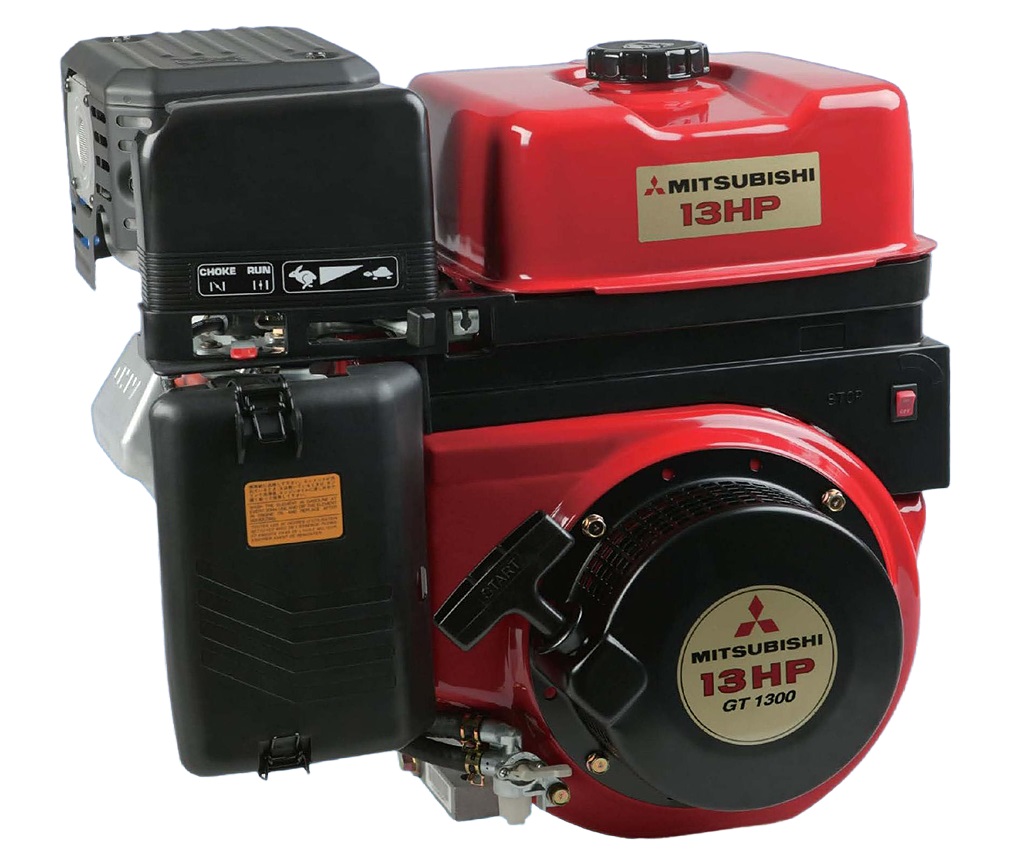

GT1300 13HP / 9.6KW 9HP / 6.6KW Gasoline PN type 31KGS
LN type 35KGS		 PN434.5/LN463*464.5*465mm   Mitsubishi GT1300.jpg (243KB)






Model prime power standby power Mitsubishi Engine alternator
kva kw kva kw Leroy-somer Stamford
M650D5 650 520 715 572 S6R2-PTA TAL-A473F S5L1D-F4
M750D5 750 600 825 660 S6R2-PTAA TAL-A49-B S5L1D-H4
M800D5 800 640 880 704 S12A2-PTA TAL-A49-C S6L1D-C4
M900D5 900 720 1000 800 S12A2-PTA2 TAL-A49-D S6L1D-D4
M1000D5 1000 800 1100 880 S12HPTA TAL-A49-E S6L1D-E4
M1250D5 1250 1000 1375 1100 S12R-PTA LSA 50.2 M6 S6L1D-G4
M1375D5 1375 1100 1513 1210 S12R-PTA2 LSA 50.2 L7 S6L1D-H4
M1500D5 1500 1200 1650 1320 S12R-PTAA2 LSA 50.2 L8 S7L1D-C4
M1650D5 1650 1320 1815 1452 S16R-PTA LSA 50.2 VL10 S7L1D-D4
M1875D5 1875 1500 2063 1650 S16R-PTA2 LSA 52.3 S5 S7L1D-F4
M2000D5 2000 1600 2200 1760 S16R-PTAA2 LSA 52.3 S6 S7L1D-G4
M2250D5 2250 1800 2475 1980 S16R2-PTAW LSA 52.3 L9 S7L1D-H4

All specifications are approximate. Specifications are subject to change without notice.

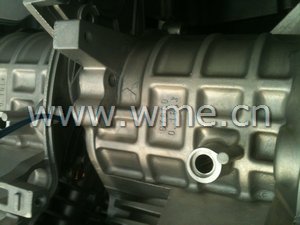

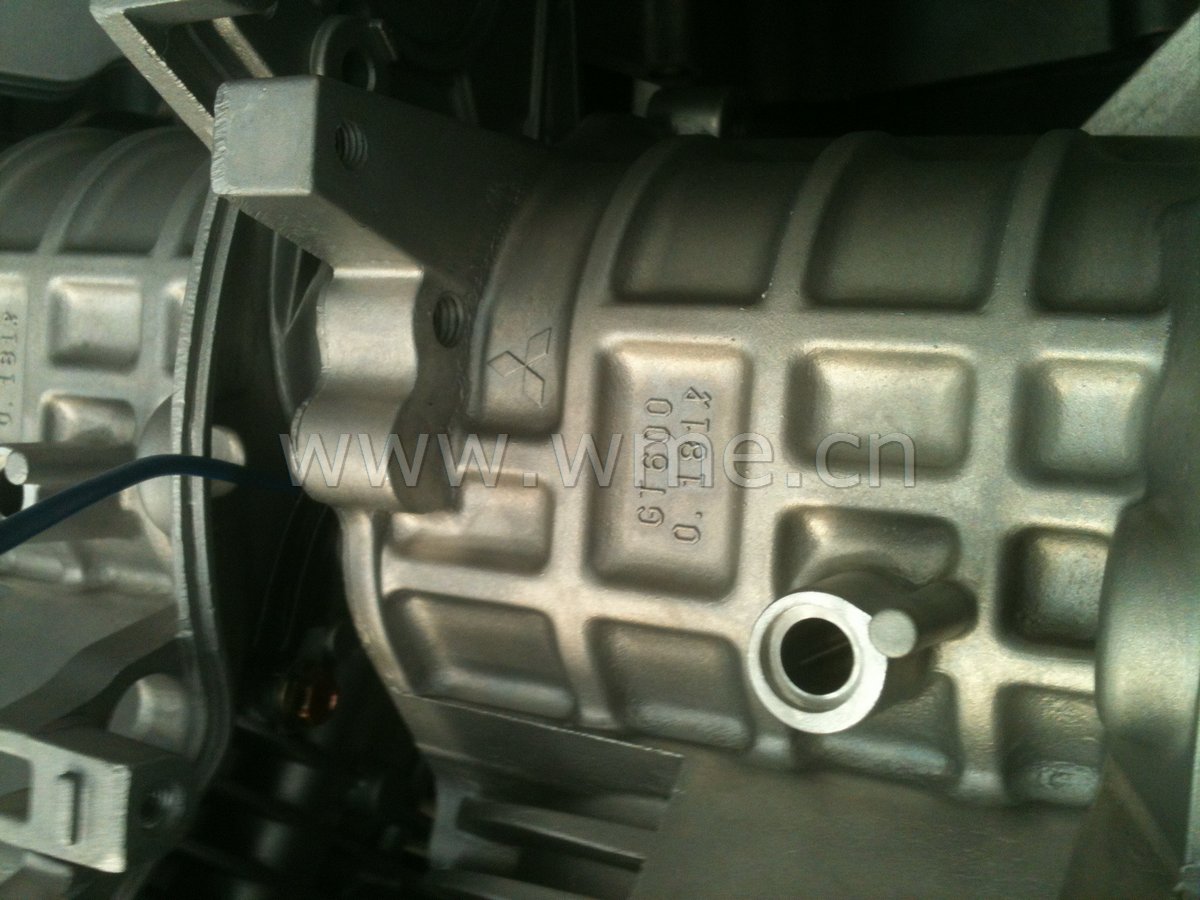

Mitsubishi brand seal
Mitsubishi brand seal		 Mitsubishi brand seal

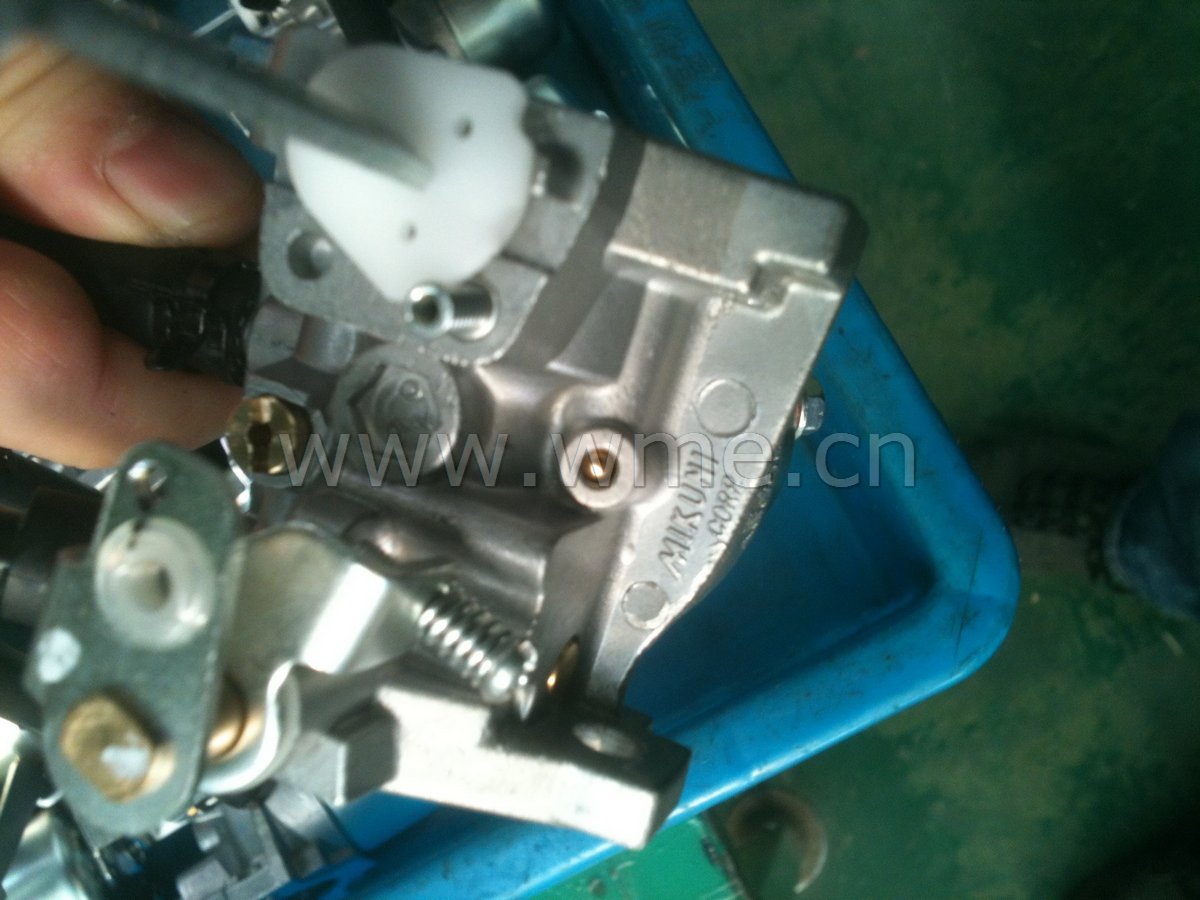

Mitsubishi brand seal		 MIKUNI brand seal
MIKUNI brand seal

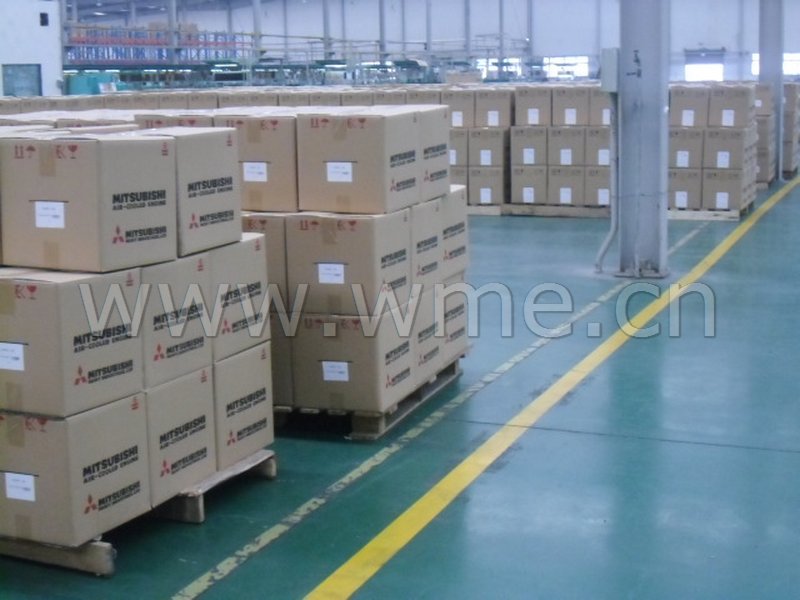

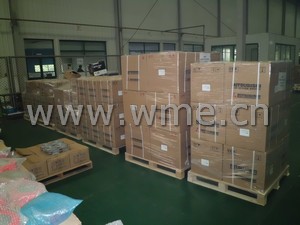

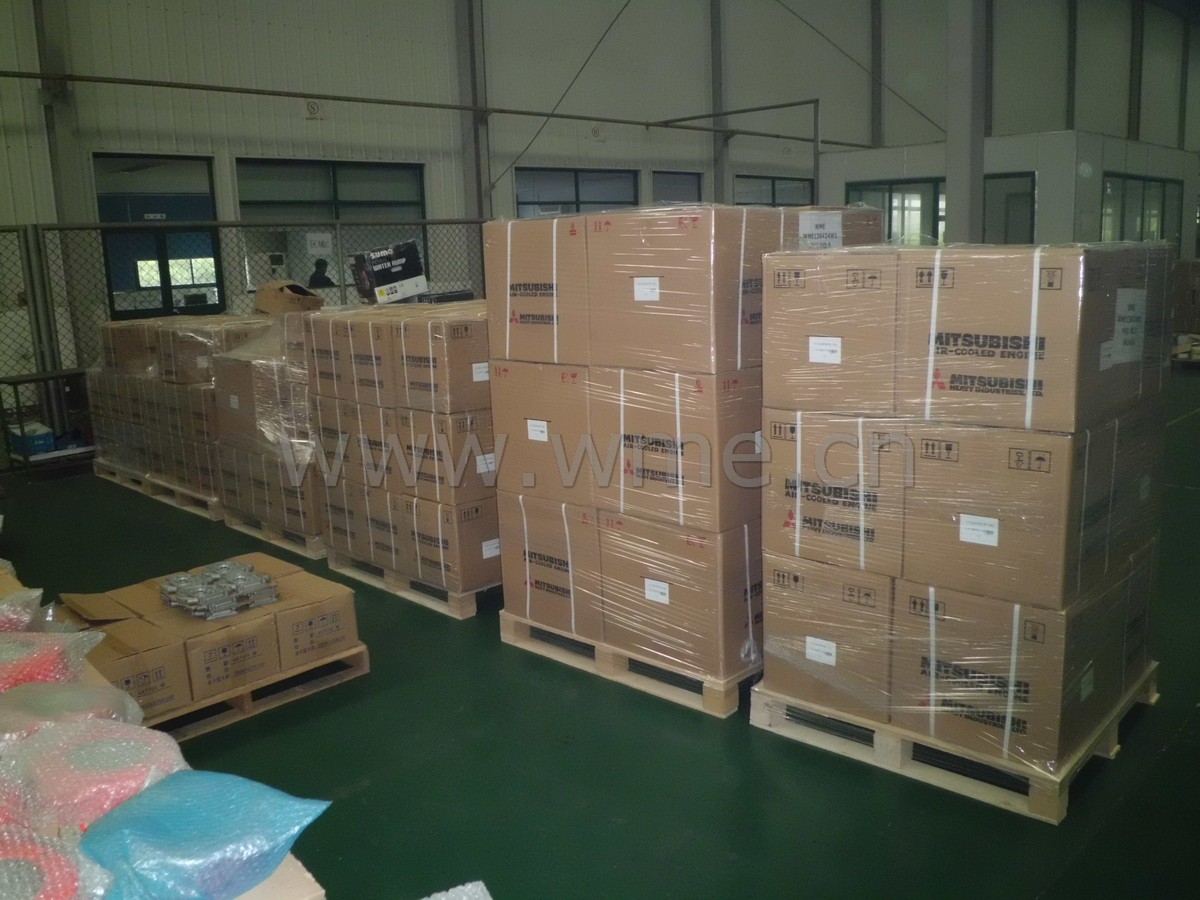

Mitsubishi warehouse

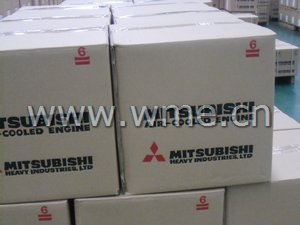

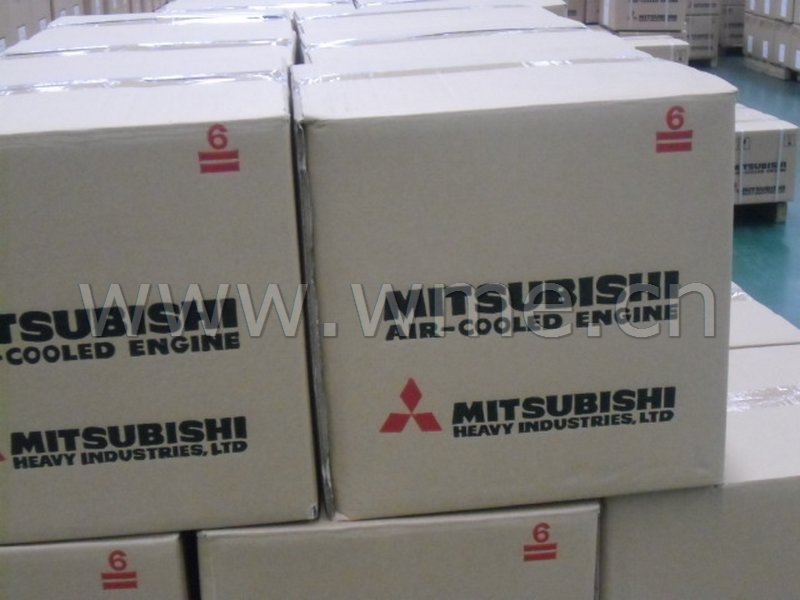

Mitsubishi warehouse		 Mitsubishi packing
Mitsubishi packing





one corner of Mitsubishi warehouse

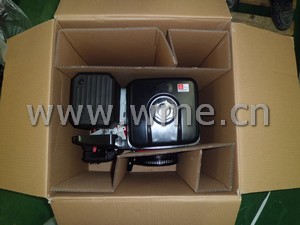

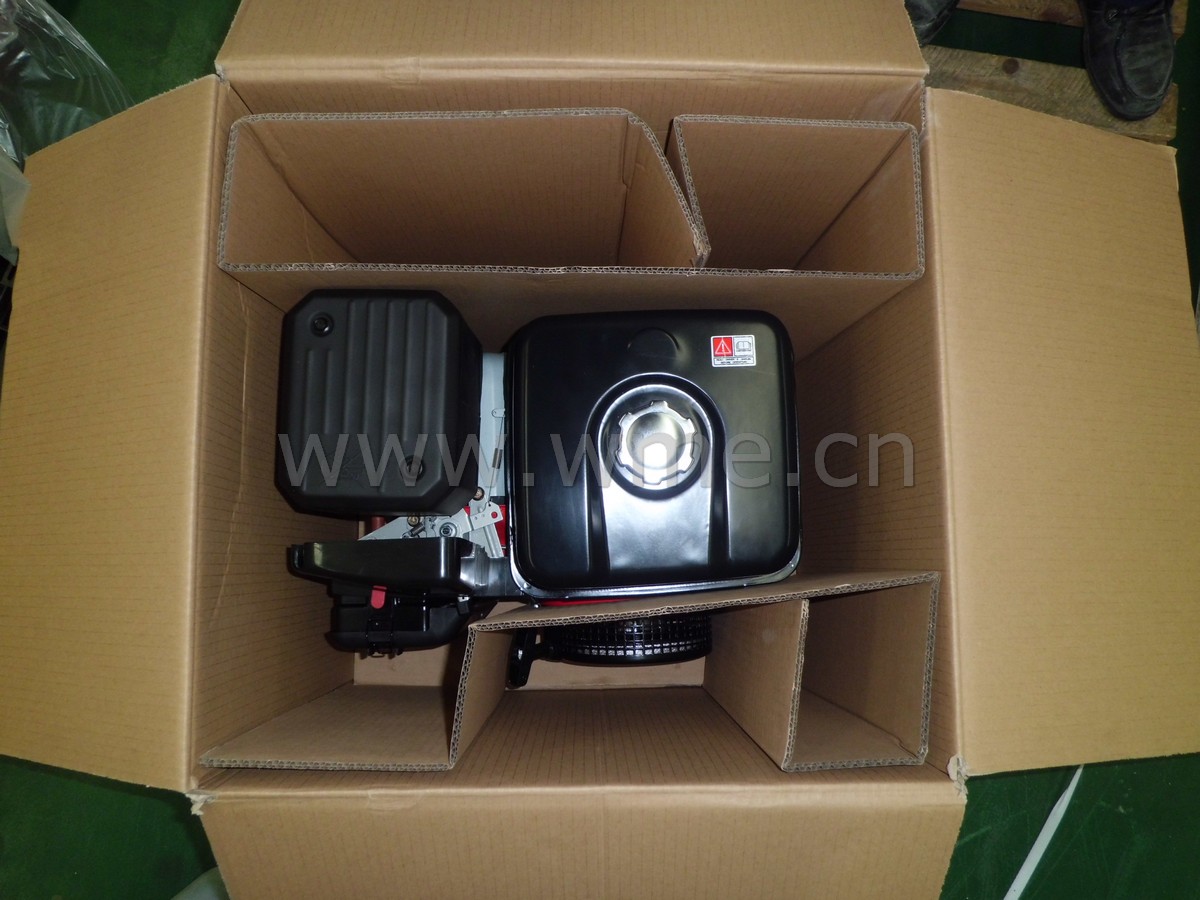

one corner of Mitsubishi warehouse		 Mitsubishi engine inside the carto
Mitsubishi engine inside the carton
