Harrow Disc

H.S. 8432 9000 00

(material: spring steel sheet 65Mn = ASTM1566 = SAE1066)

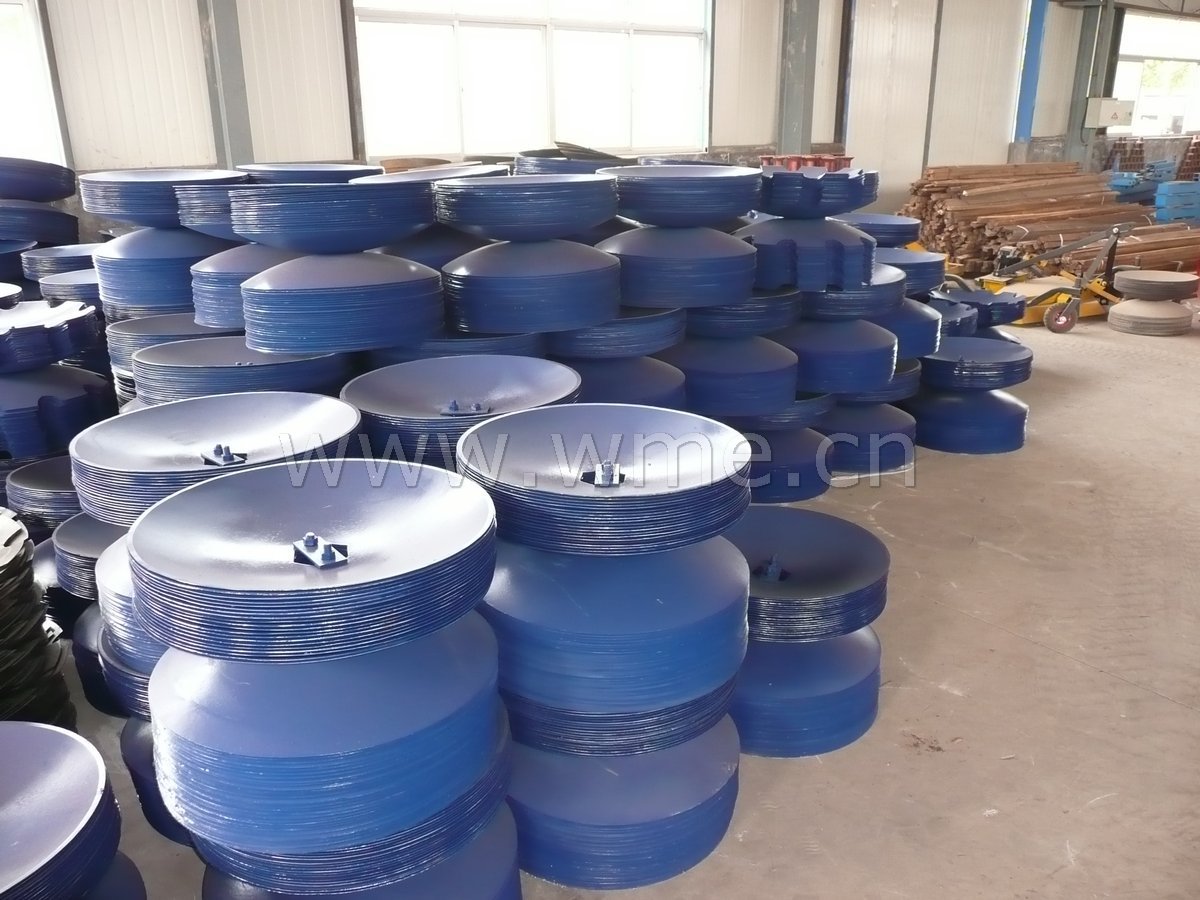

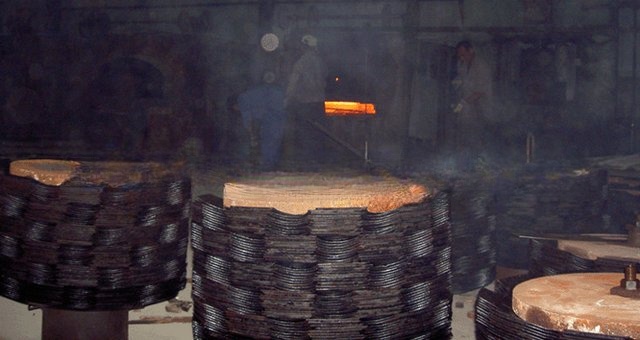

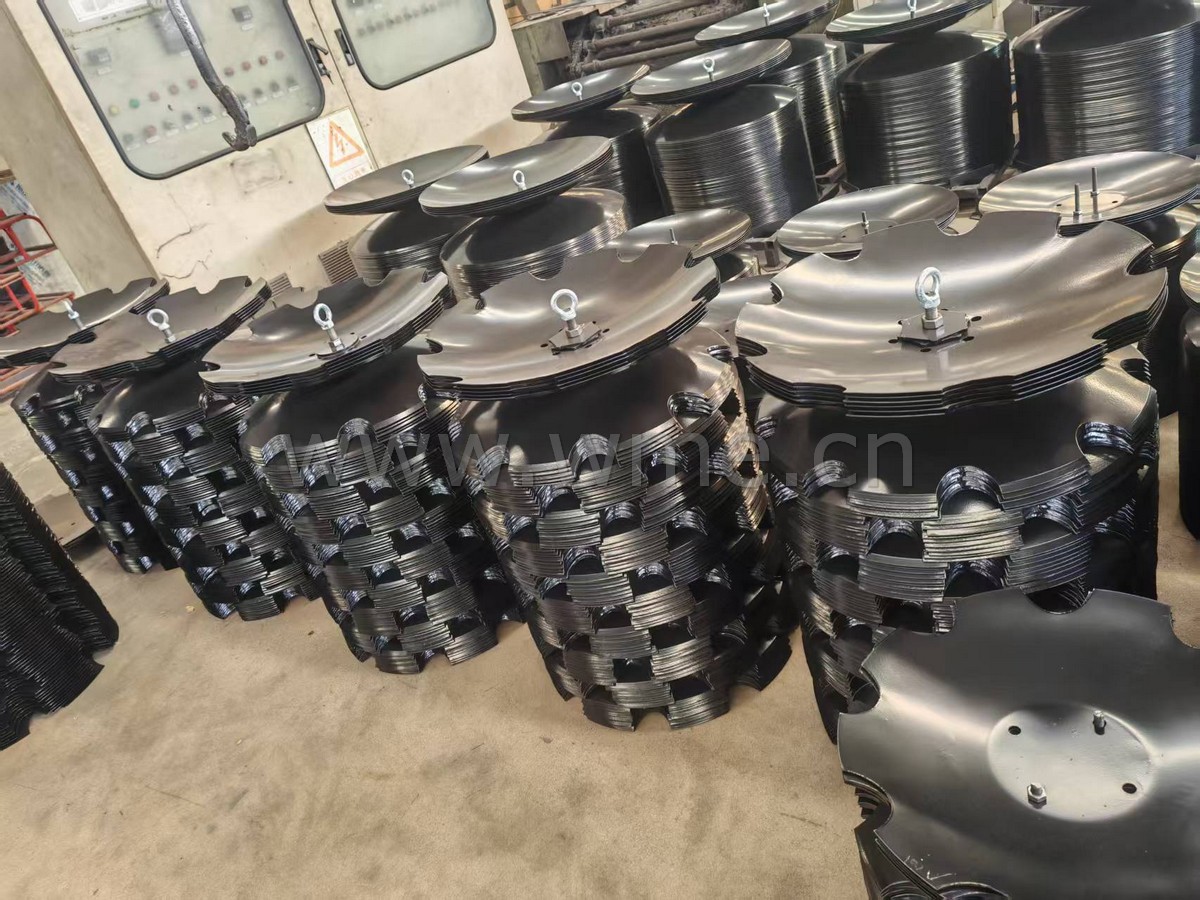

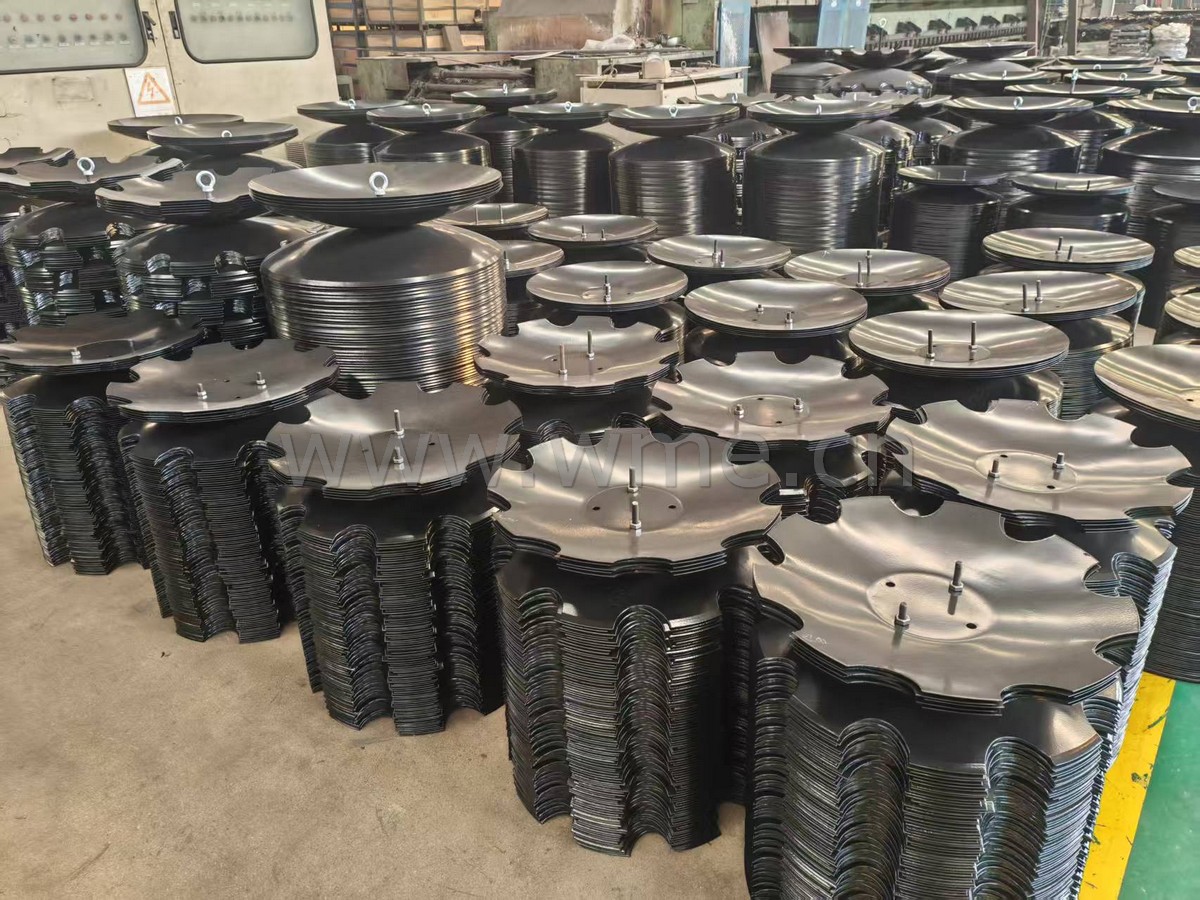

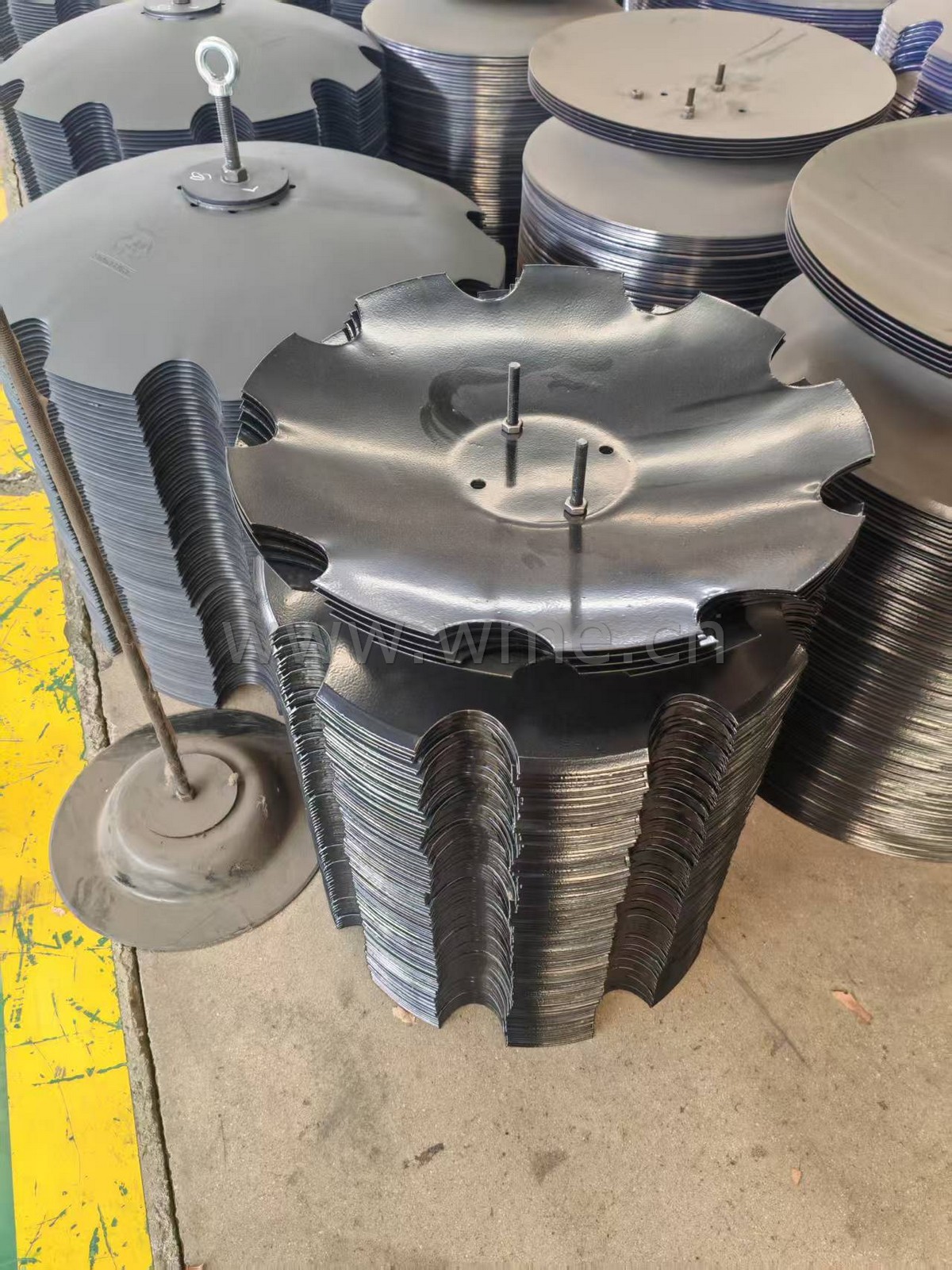

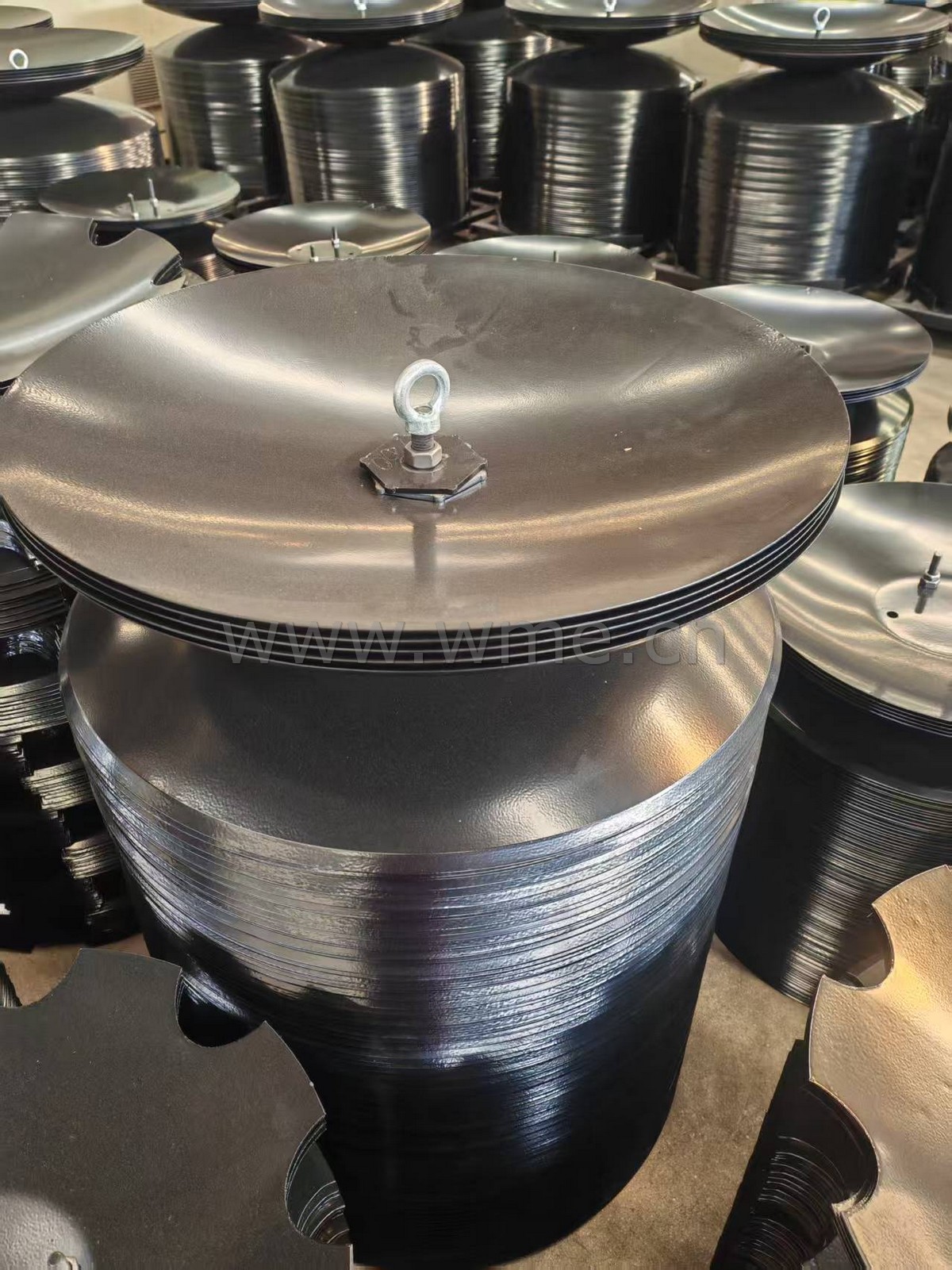

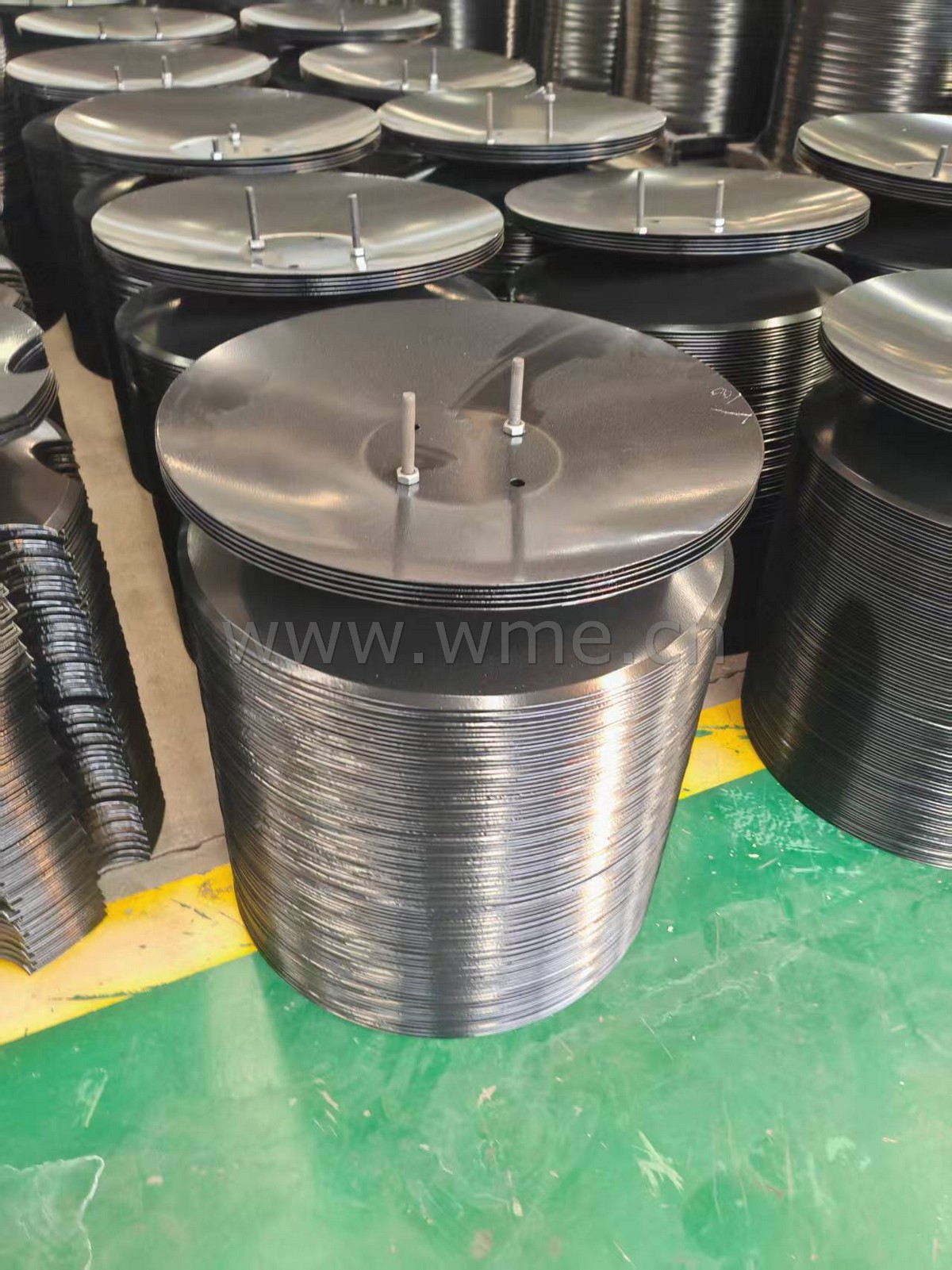

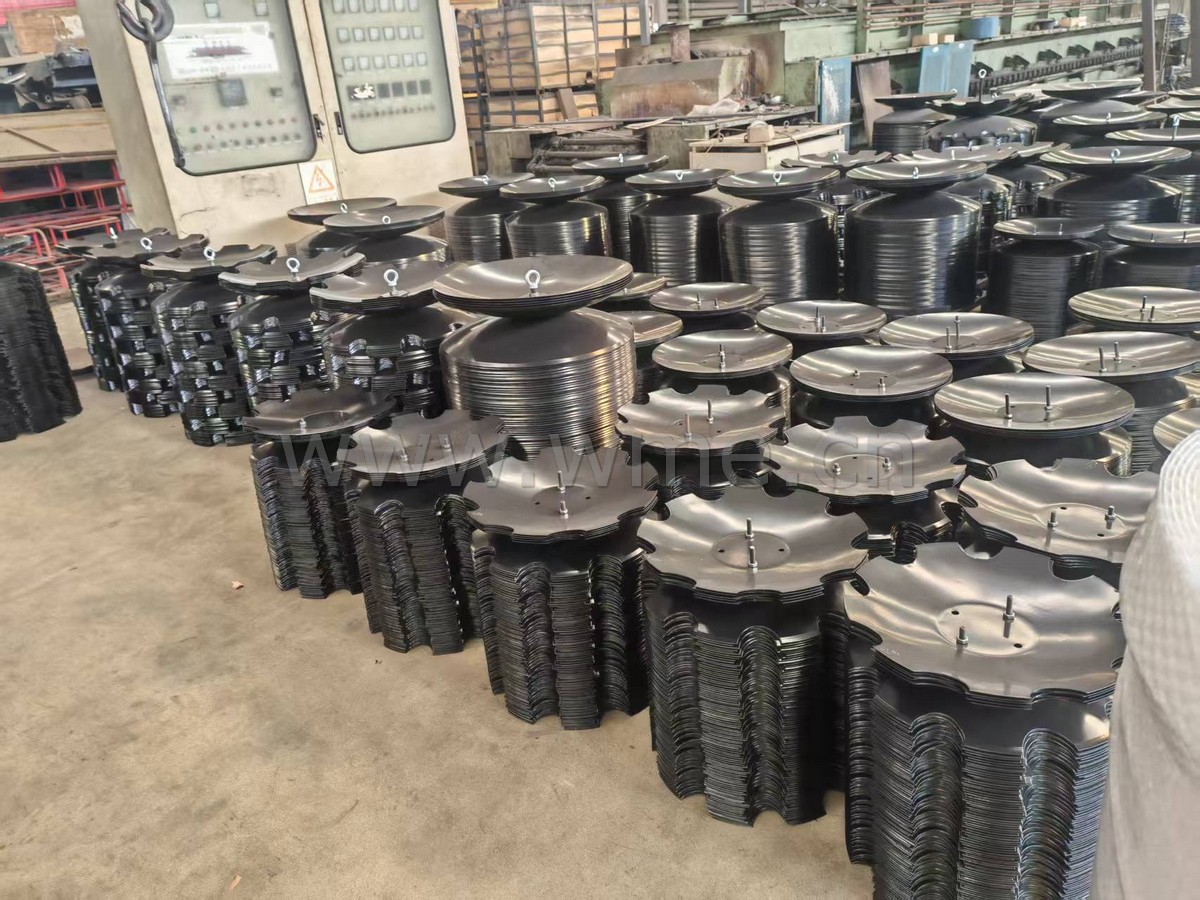

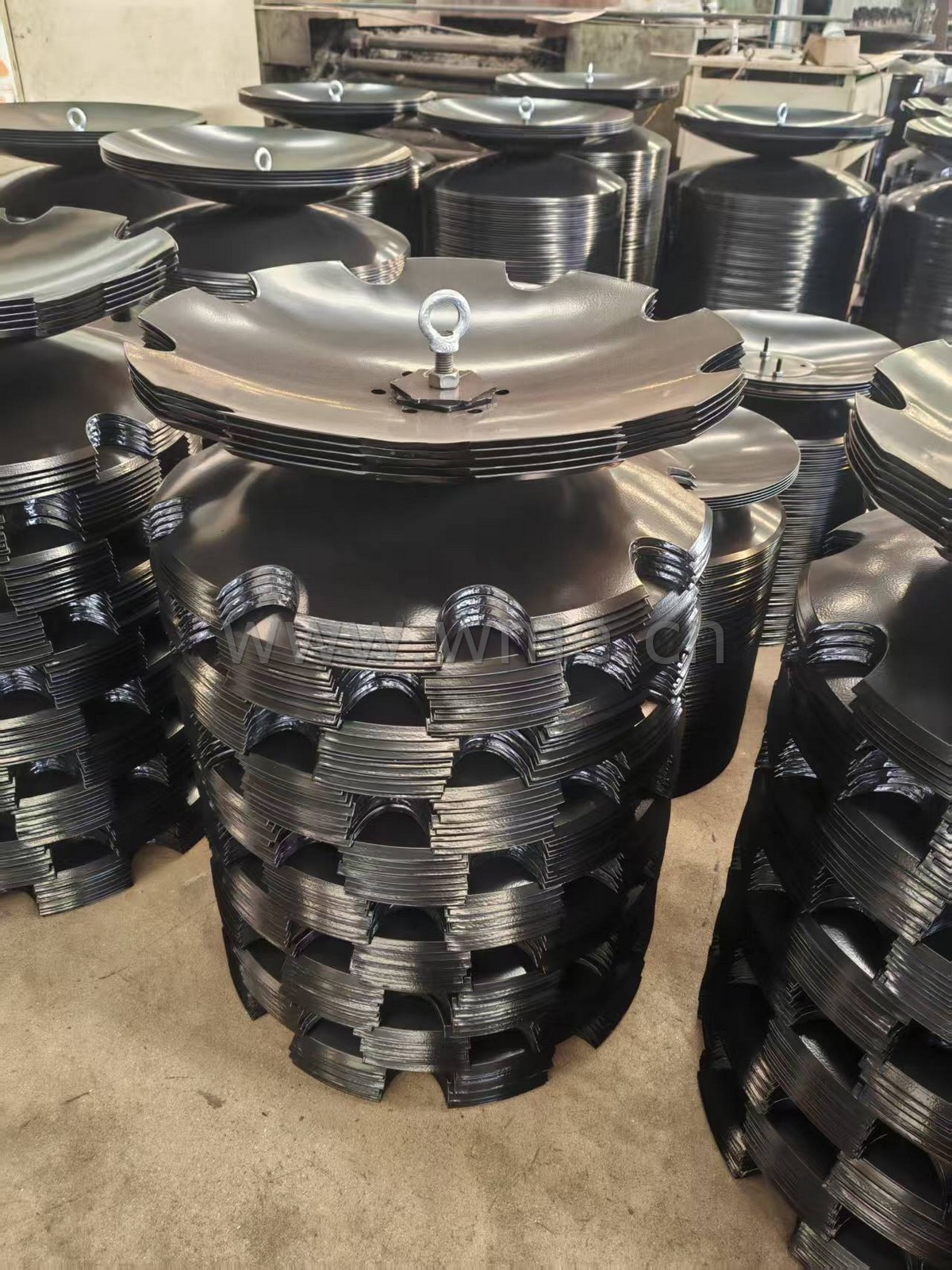

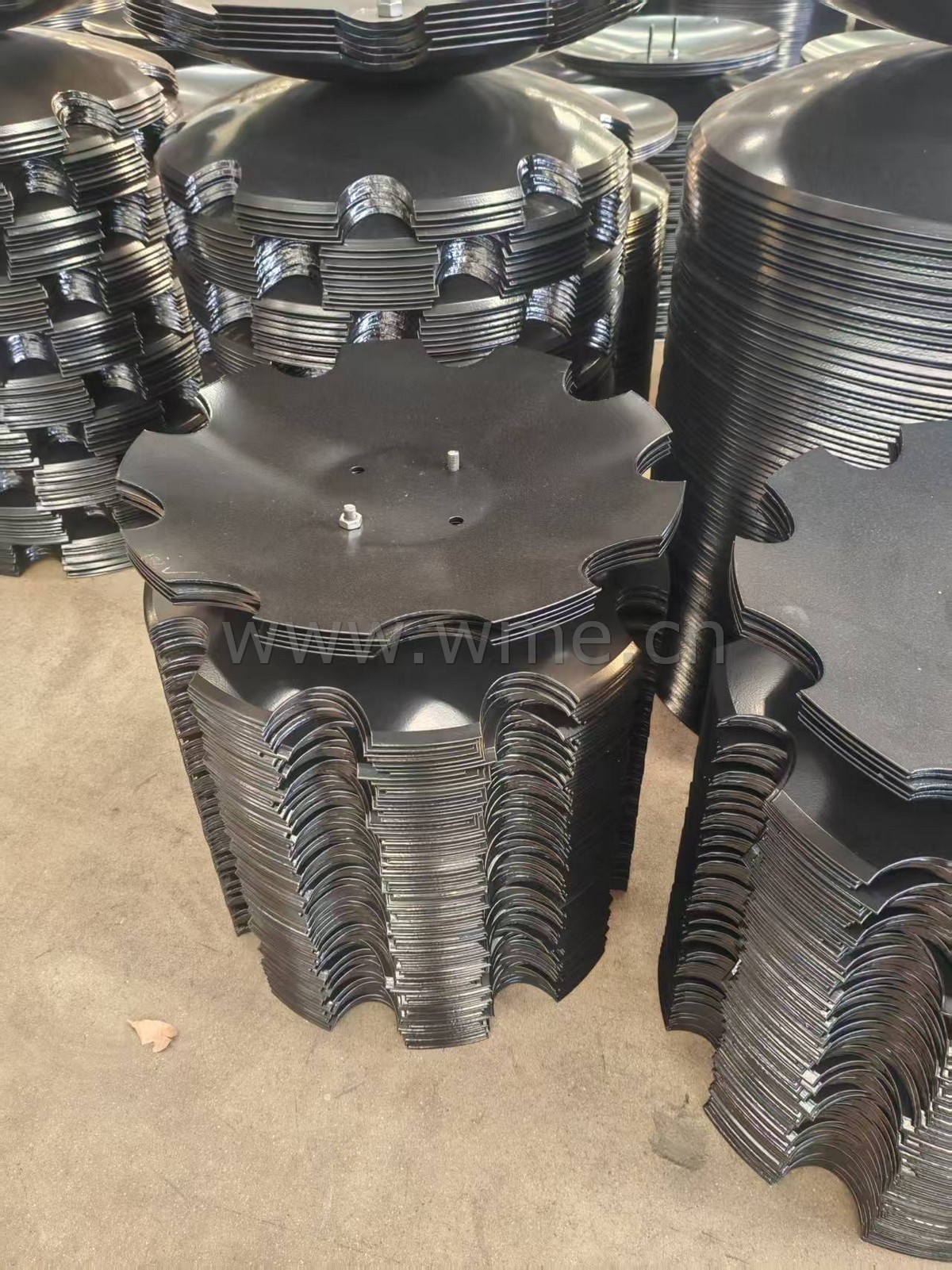

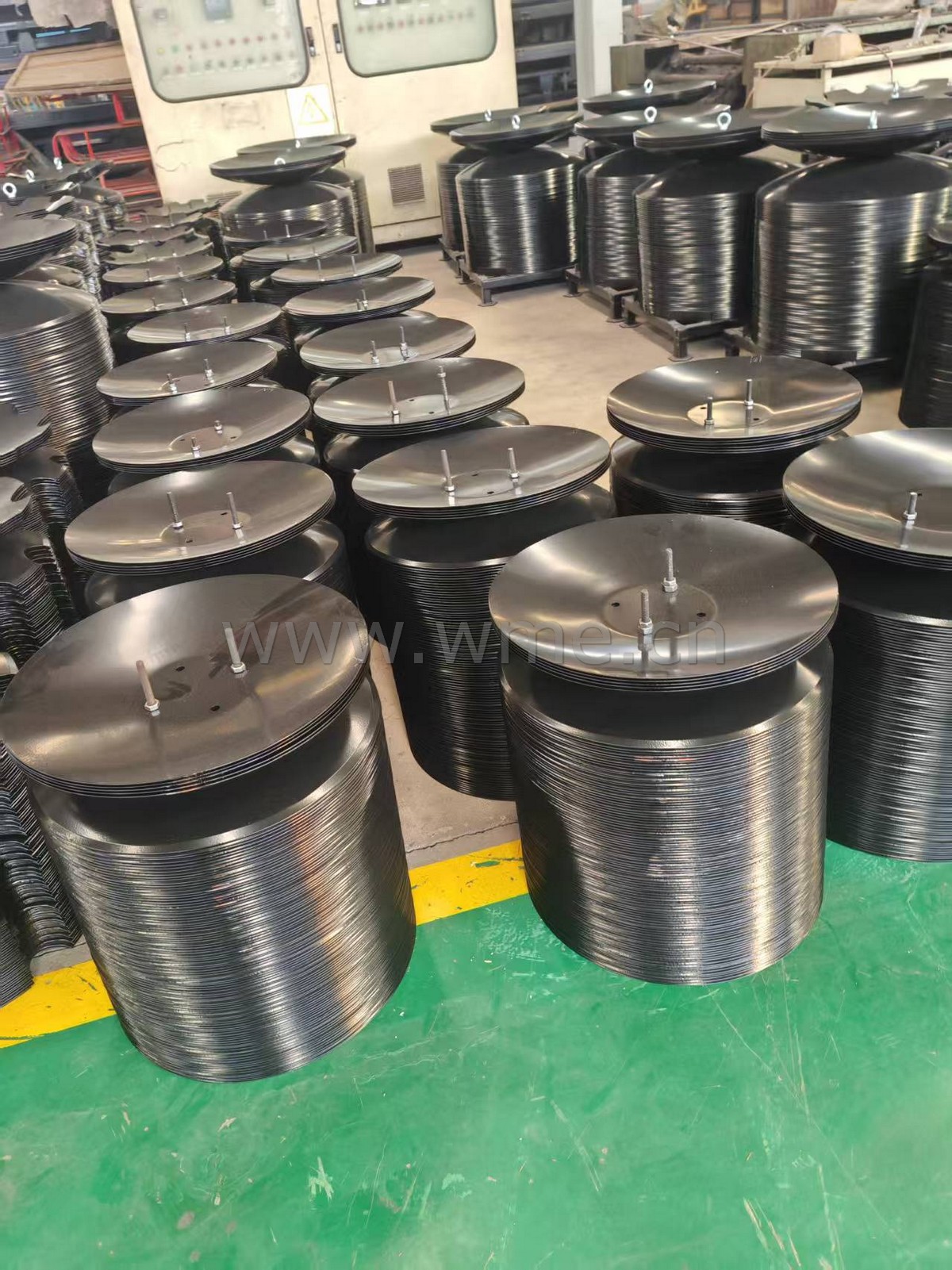

Harrow disc production in factory

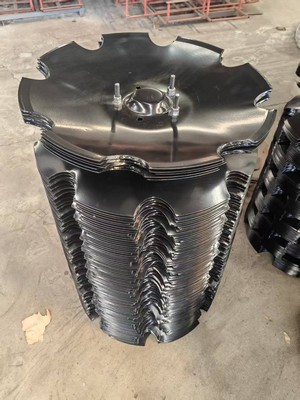

Harrow disc blade



Harrow disc will be assembled for disc harrow. Our harrow disc are with material of 65Mn. This quality harrow disc have been exported to many countries including Europe and North America.

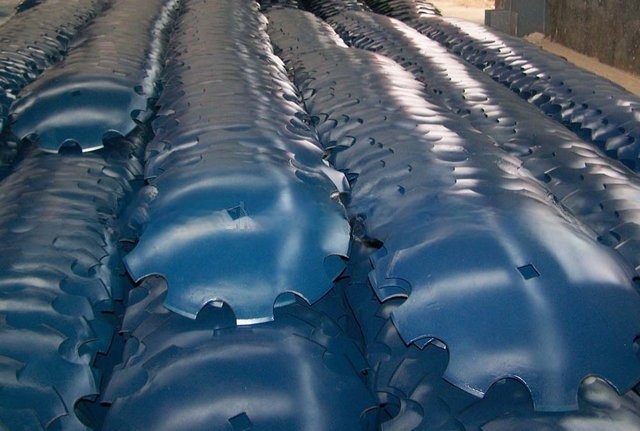

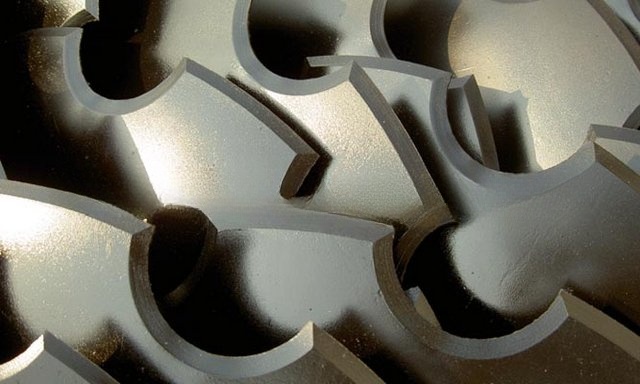

There are many kinds of harrow disc with different appearance: plain harrow disc, notched harrow disc, scallop harrow disc... Besides the harrow disc may be with many different hole: round, square, hex, ...

The material cost affect much on harrow disc. If any requirement, pls tell us the harrow disc diameter, thickness, concavity, destination port, and better with drawing, so that we can make accurate calculation for your requirement.


Model Diameter Thickness Concavity ( Curve depth ) Hole
18”x4mm 18" / 460mm 4mm - -
20”x4mm 20" / 510mm 4mm - -
22”x4mm 22" / 560mm 4mm - -
22”x5mm 22" / 560mm 5mm - -
24”x4mm 24" / 610mm 4mm - -
24”x5mm 24" / 610mm 5mm - -
24”x6mm 24" / 610mm 6mm - -
26”x5mm 26" / 660mm 5mm - -
26”x6mm 26" / 660mm 6mm - -
26”x7mm 26" / 660mm 7mm - -
28”x6mm 28" / 710mm 6mm - -
28”x7mm 28" / 710mm 7mm - -
28”x8mm 28" / 710mm 8mm - -
30”x7mm 30" / 760mm 7mm - -
30”x8mm 30" / 760mm 8mm - -
30”x10mm 30" / 760mm 10mm - -
32”x8mm 32" / 810mm 8mm - -
32”x10mm 32" / 810mm 10mm - -
32”x12mm 32" / 810mm 12mm - -
36”x10mm 36" / 910mm 10mm - -
36”x12mm 36" / 910mm 12mm - -

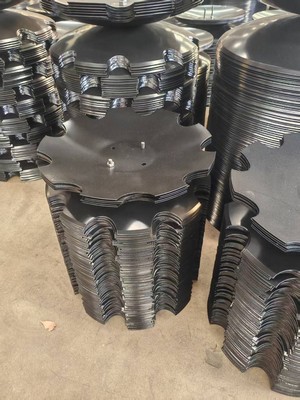

plain type harrow disc with 5 round holenotched type harrow disc with 7 holeplain type harrow disc with 7 hole

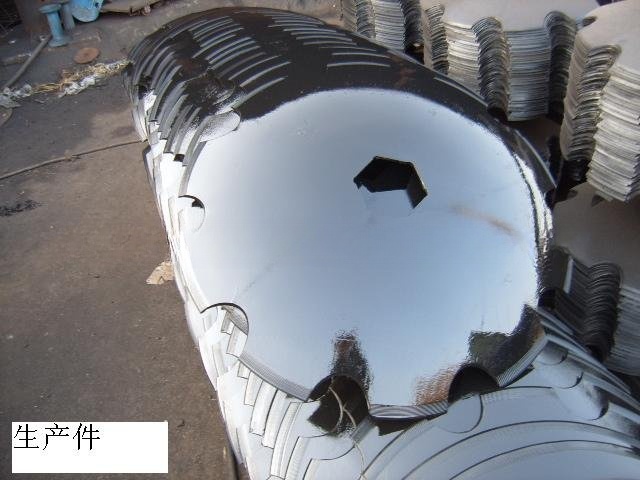

plain type harrow disc with 5 square holeplain type harrow disc with 1 round holenotched type harrow disc with hex hole
